Product Details
Place of Origin: Hangzhou China
Brand Name: QIANHE

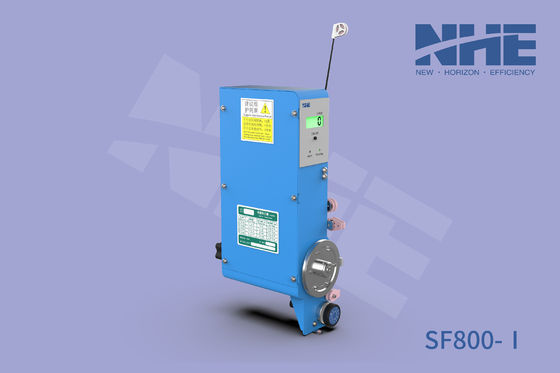

Model Number: SF800-I
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$500-US$1000per set
Packaging Details: Carton with foam
Delivery Time: 3-15 working days
Payment Terms: T/T, Western Union ,Paypal
Supply Ability: 500 set per month
Power Supply: |
DC36-48V |
Voltage: |
100W |
Mounting Hole: |
Ф 16mm |
Wire Speed: |
20m/s |
Feature: |
Feed Wire Automaticly |
Tension Range: |
2-800g |
Wire Range: |
0.02-0.04mm |
MOQ: |
1set |
Delivery: |
By Air |
Application: |
Coil Winding Machine |
Power Supply: |
DC36-48V |
Voltage: |
100W |
Mounting Hole: |
Ф 16mm |
Wire Speed: |
20m/s |
Feature: |
Feed Wire Automaticly |
Tension Range: |
2-800g |
Wire Range: |
0.02-0.04mm |
MOQ: |
1set |
Delivery: |
By Air |
Application: |
Coil Winding Machine |
Information of our company
Hangzhou Qianhe Precsion machinery Co., Ltd is professional manufacturer for coil winding tensioner with 15 years experience in this field . We offer Magnetic tensioner, electronic tensioner and servo tensioner at competitive price. Our products are widely acclaimed for their quality such as durability , smooth finish and optimum performance by our clients .
Servo Tensioner
Servo tensioner Unlike traditional tensioning methods,Servo tension device feed the wire automatically depends on the winding requirement.
The tension generate by servo controlled tensiner is very much more stable and consistence,compare with mechanical or magnetic type.
Tension can be set from 2g to 800g,it depends on the model.
Servo motor and control system are all packed within the body,SF series is solid and compact in design.
It operates with DC36V electric power.
1. Products features
1, Active wire feeding follow the speed of the winding machine；
2, SF series servo tensioner with online tension measurement display function, the display value is accurate and stable, the display unit is gf;
3, The DC servo motor with high-precision encoder has the following advantages over the servo tensioner with stepper motor as the wire feeding mechanism:
A,high following accuracy, good tension stability, fast acceleration; low noise;
B,high speed, high torque, large tension range, simple selection;
C,high efficiency, energy saving, low power consumption, minimum operating current, low heat generation of the motor and drive, no need to dissipate heat;
Benefits
TOP REPEATIBILITY PRODUCTION
CONSTANT ELECTRICAL PARAMETERS OF COILS
PERFECT WIRE LAYERING
Supply Ability: 1000 Set/Sets per Month
Packaging Details:Coil Winding Tensioner Servo Wire Tensioner for Fine Copper Wire with package by foam and carton box .
Port: Hangzhou /Shanghai /Ningbo
Lead Time : 1-5 working days
Specification :
| Servo Tensioner | |||||||
| Part.No | Tensioner model | Tension Arm | Tension Spring | Tension Range (gf) | Wire Range (mm) | Tension Arm head structure | Tension Arm size |
| 1 | SF800-Ⅰ | SF-1# | T1,T2,T3 | 2-50 | 0.02-0.1 | Ceramic Eylet/Ruby ,Wire Roller(S) | Φ0.8*Φ2*150 |
| 2 | SF800-Ⅰ | SF-2# | T2,T4,T5 | 5-100 | 0.03-0.15 | Ruby / Wire Roller(M) | Φ1.5*Φ2*200 |
| 3 | SF800-Ⅰ | SF-3# | T5,T8,T9 | 30-450 |
0.06-0.28 |
Ruby / Ceramic Pulley(005)/Wire Roller(M) | Φ1.5*Φ4*200 |
| 4 | SF800-Ⅰ | SF-4# | T7,T9,T10 | 100-800 | 0.12-0.4 | Ruby / Ceramic Pulley(005)/Wire Roller(L) | Φ2.0*Φ4.0*150 |
Main parameters
| Product Model | Power | Power | Input Air Pressure | Mounting Hole | Weight | Product Size |
| SF800-I | DC36V | 100W | / | Ф 16mm | 1.8kg | 288*164*72.5(mm) |
Dimensional drawing
Product Structure
Picture Display:
